Underbody Shield Clip, Radiator Pin, Expansion Clip, Fender Clip, Door Sill Trim Clip

Product Overview

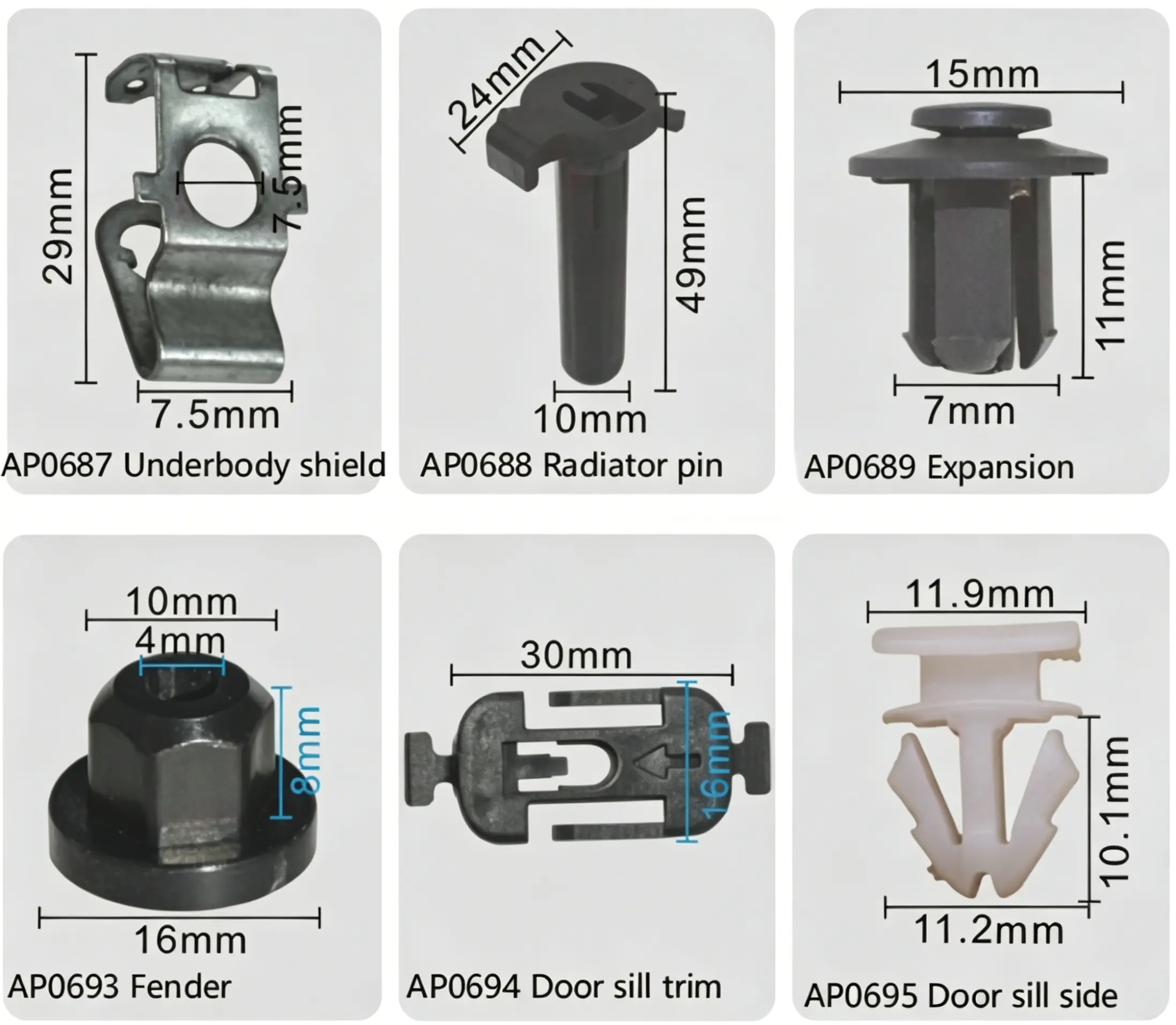

This selection covers commonly used automotive fasteners for Audi underbody shield, radiator mounting, expansion panel, fender liner, and door sill trim systems. Refer to the image above for exact dimensions and part markings.

Fastener Reference List

AP0687 – Underbody shield clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: underbody shield retainer and engine splash guard clip.

AP0688 – Radiator pin. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: radiator mounting pin and cooling module alignment retainer.

AP0689 – Expansion clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q7 (4M). Application location: expansion panel retainer and body panel expansion fastener.

AP0693 – Fender clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U), and Q5 (8R). Application location: fender liner retainer and wheel arch inner shield clip.

AP0694 – Door sill trim clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: door sill trim retainer and scuff plate clip.

AP0695 – Door sill side clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: door sill side retainer and lower side trim clip.

How to ensure correct fitment:

1. Remove your original fastener from the vehicle

2. Measure total length, head diameter, stem length and rib width using a caliper

3. Compare with the dimensions marked on the image above

4. If all dimensions match within 0.5mm, this part will fit your vehicle

Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.

Please verify the part against your original Audi fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
