Seat Slider Clip, Rearview Mirror Clip, Glass Guide Clip

Product Overview

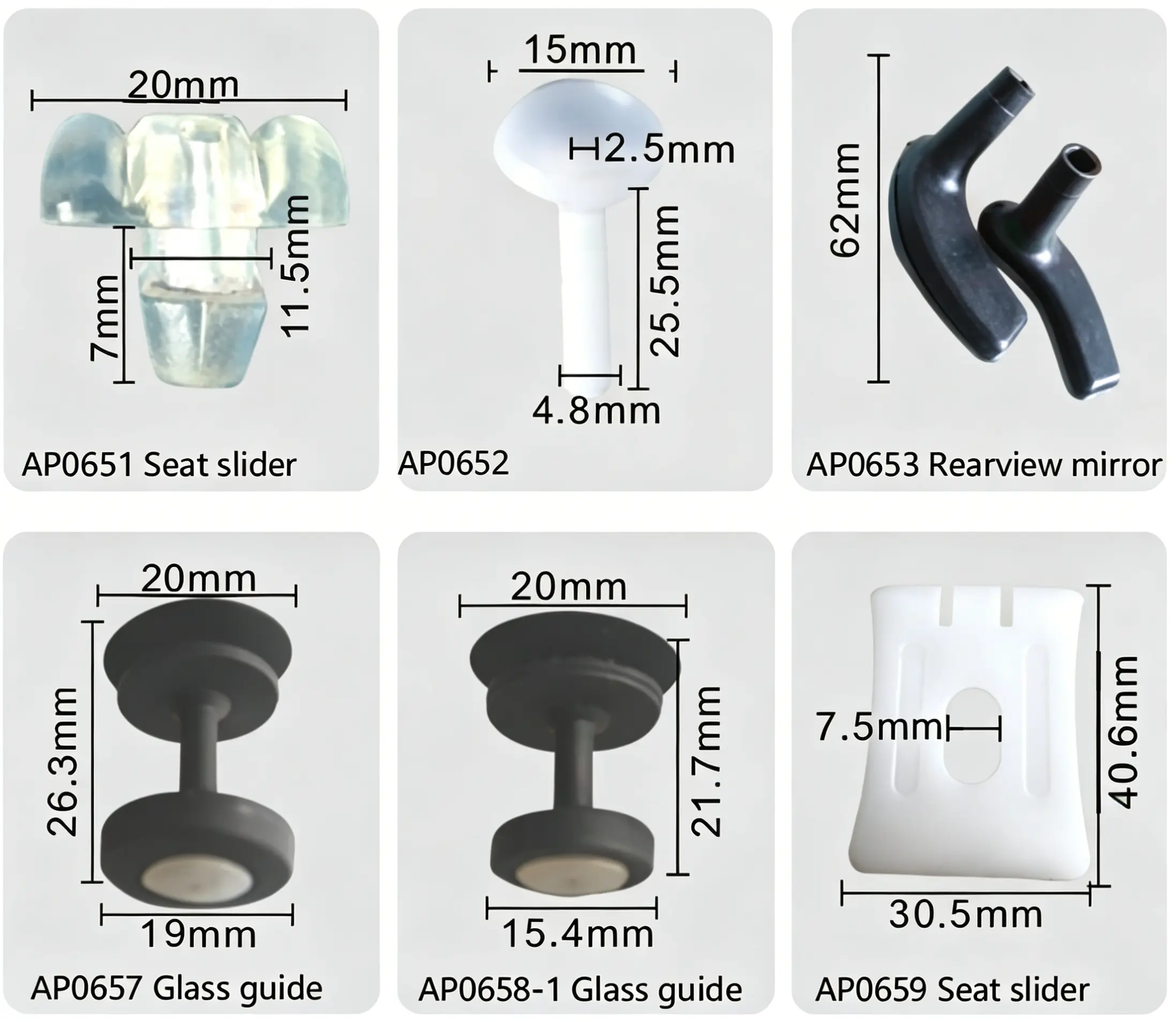

This selection covers commonly used automotive fasteners for Audi seat slider mechanism, rearview mirror assembly, and glass guide systems. Refer to the image above for exact dimensions and part markings.

Fastener Reference List

AP0651 – Seat slider clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: seat slider mechanism retainer and seat rail end clip.

AP0652 – Retainer clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: interior trim retainer and panel clip.

AP0653 – Rearview mirror clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q7 (4M). Application location: rearview mirror mounting retainer and mirror housing clip.

AP0657 – Glass guide clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U), and Q5 (8R). Application location: door window glass guide retainer and window channel clip.

AP0658-1 – Glass guide clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: window glass guide retainer and door glass stabilizer clip.

AP0659 – Seat slider clip. Test-fitted on Audi A6 (C7/C8), A7 (4G/4K), A8 (D4/D5), and Q7 (4M). Application location: seat slider end stop and seat rail mounting clip.

How to ensure correct fitment:

1. Remove your original fastener from the vehicle

2. Measure total length, head diameter, stem length and rib width using a caliper

3. Compare with the dimensions marked on the image above

4. If all dimensions match within 0.5mm, this part will fit your vehicle

Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.

Please verify the part against your original Audi fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
