Seat Clip, Lower Shield Clip, Grill Clip, Trunk Partition Clip, Hood Rubber Bumper, Seat Retainer

Product Overview

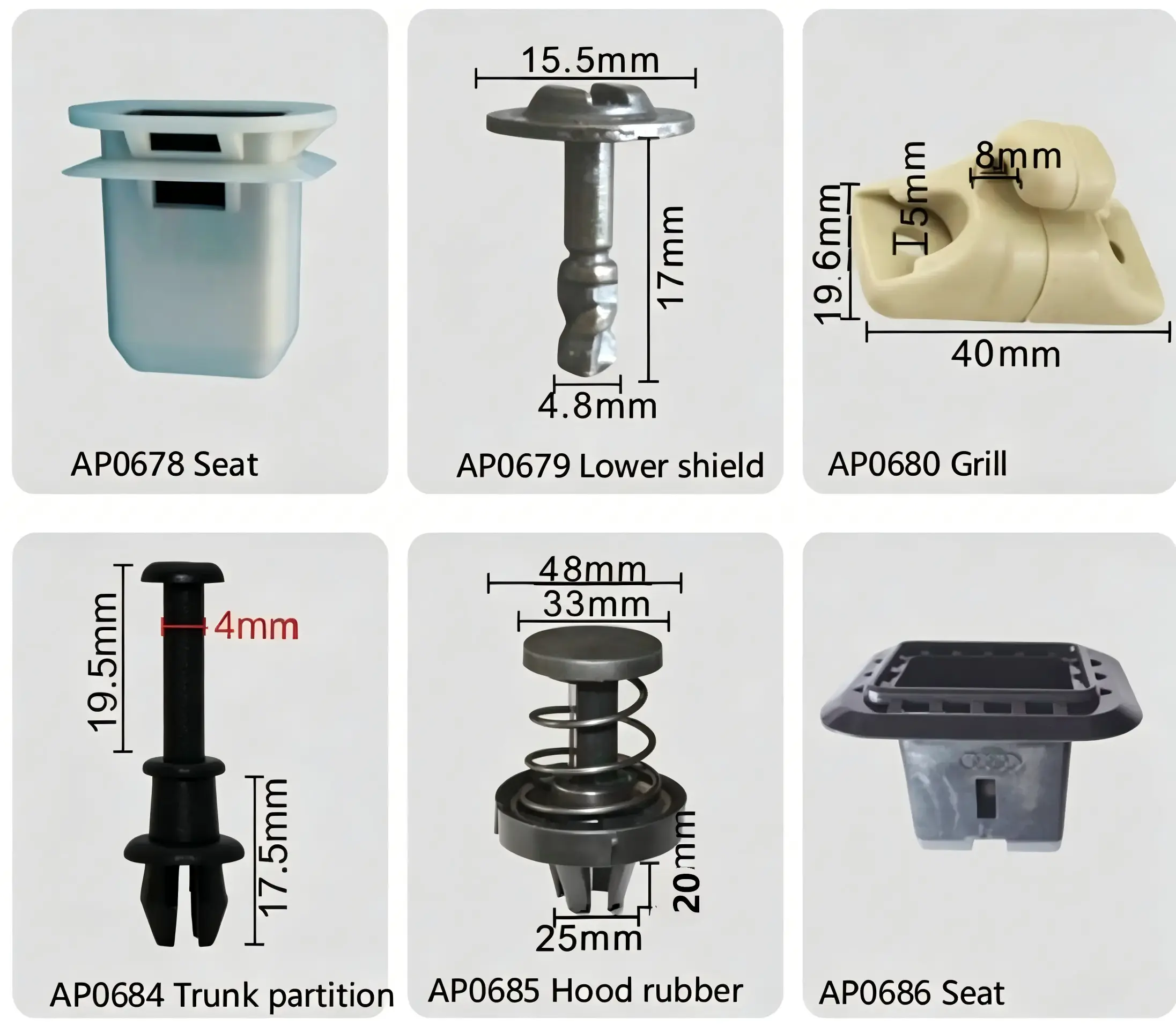

This selection covers commonly used automotive fasteners for Audi seat trim, lower shield, grille, trunk partition, and hood bumper systems. Refer to the image above for exact dimensions and part markings.

Fastener Reference List

AP0678 – Seat clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: seat trim panel retainer and seat base cover clip.

AP0679 – Lower shield clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: lower engine shield retainer and underbody splash shield clip.

AP0680 – Grill clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: front grille retainer and grille surround clip.

AP0684 – Trunk partition clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R). Application location: trunk partition net retainer and cargo area divider clip.

AP0685 – Hood rubber bumper. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U), and Q5 (8R). Application location: hood rubber bumper stop and adjustable hood cushion retainer.

AP0686 – Seat retainer. Test-fitted on Audi A6 (C7/C8), A7 (4G/4K), A8 (D4/D5), and Q7 (4M). Application location: seat mounting retainer and seat rail clip.

How to ensure correct fitment:

1. Remove your original fastener from the vehicle

2. Measure total length, head diameter, stem length and rib width using a caliper

3. Compare with the dimensions marked on the image above

4. If all dimensions match within 0.5mm, this part will fit your vehicle

Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.

Please verify the part against your original Audi fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
