Headlight Bracket, Bumper Clip, Roof Clip, Door Panel Clip, Door Sill Clip, Heat Shield Clip

Product Overview

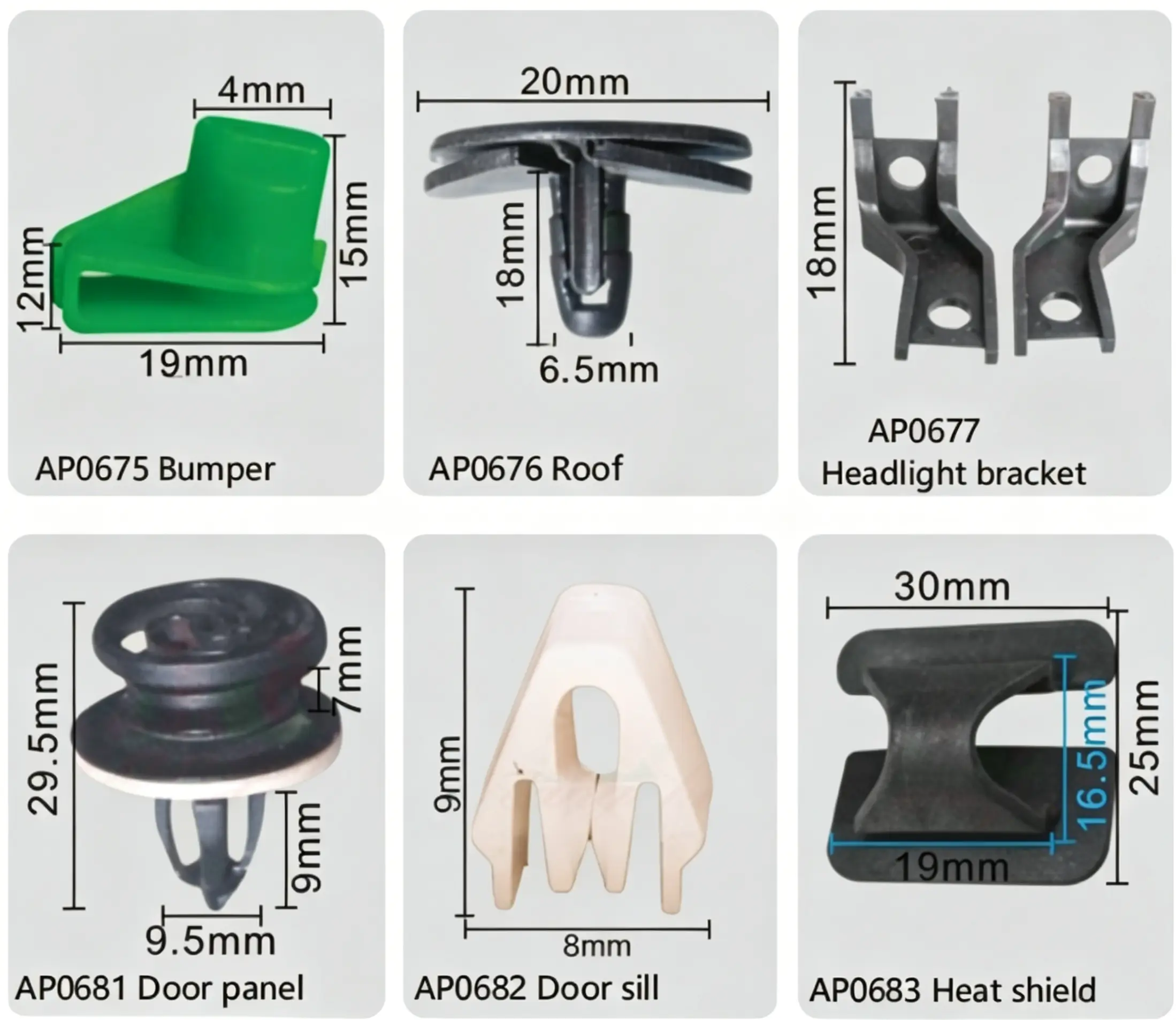

This selection covers commonly used automotive fasteners for Audi headlight assembly, bumper cover, roof trim, door panel, door sill, and heat shield systems. Refer to the image above for exact dimensions and part markings.

Fastener Reference List

AP0675 – Bumper clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), Q5 (8R/80A), and A6 (C7/C8). Application location: bumper cover retainer and front/rear bumper fascia clip.

AP0676 – Roof clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: roof trim retainer and roof rail molding clip.

AP0677 – Headlight bracket. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: headlight housing mounting bracket and headlight leveling adjustment retainer.

AP0681 – Door panel clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U), and Q5 (8R). Application location: door inner panel retainer and door trim panel clip.

AP0682 – Door sill clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: door sill trim retainer and scuff plate clip.

AP0683 – Heat shield clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q5 (8R), and A6 (C7). Application location: exhaust heat shield retainer and underbody heat shield clip.

How to ensure correct fitment:

1. Remove your original fastener from the vehicle

2. Measure total length, head diameter, stem length and rib width using a caliper

3. Compare with the dimensions marked on the image above

4. If all dimensions match within 0.5mm, this part will fit your vehicle

Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.

Please verify the part against your original Audi fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
