Washer Nozzle Clip, Wiper Arm Cap, Headlight Trim Clip, Trim Molding Clip, Heat Shield Clip, Fender

Product Overview

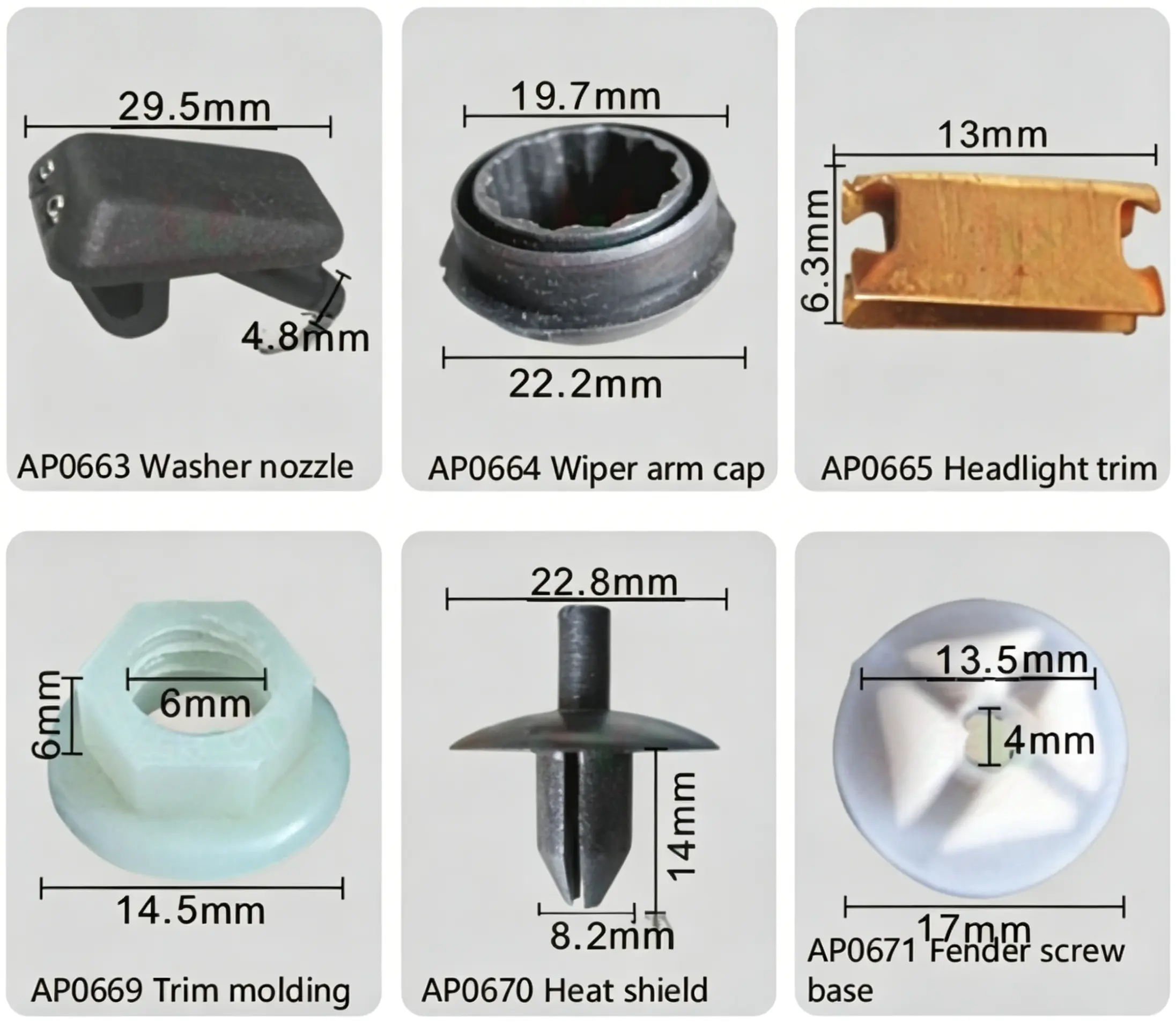

This selection covers commonly used automotive fasteners for Audi washer nozzle, wiper arm, headlight trim, trim molding, heat shield, and fender screw base systems. Refer to the image above for exact dimensions and part markings.

Fastener Reference List

AP0663 – Washer nozzle clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: windshield washer nozzle retainer and hood washer jet clip.

AP0664 – Wiper arm cap. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: wiper arm pivot cap and windshield wiper nut cover.

AP0665 – Headlight trim clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q7 (4M). Application location: headlight trim retainer and headlight housing bezel clip.

AP0669 – Trim molding clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U), and Q5 (8R). Application location: exterior trim molding retainer and body side molding clip.

AP0670 – Heat shield clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: exhaust heat shield retainer and underbody heat shield clip.

AP0671 – Fender screw base. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: fender screw mounting base and fender liner screw retainer.

How to ensure correct fitment:

1. Remove your original fastener from the vehicle

2. Measure total length, head diameter, stem length and rib width using a caliper

3. Compare with the dimensions marked on the image above

4. If all dimensions match within 0.5mm, this part will fit your vehicle

Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.

Please verify the part against your original Audi fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
