Fender Clip, Underbody Shield Clip, Engine Shield Clip, Engine Hood Heat Insulation Clip
Selection of fender, underbody shield, engine shield and hood insulation fasteners
Test-fitted on select Audi models (please verify fitment before ordering)
Buy individually as needed
Includes fender clip, underbody shield clip, engine shield clip, hood heat insulation clip
Product Overview

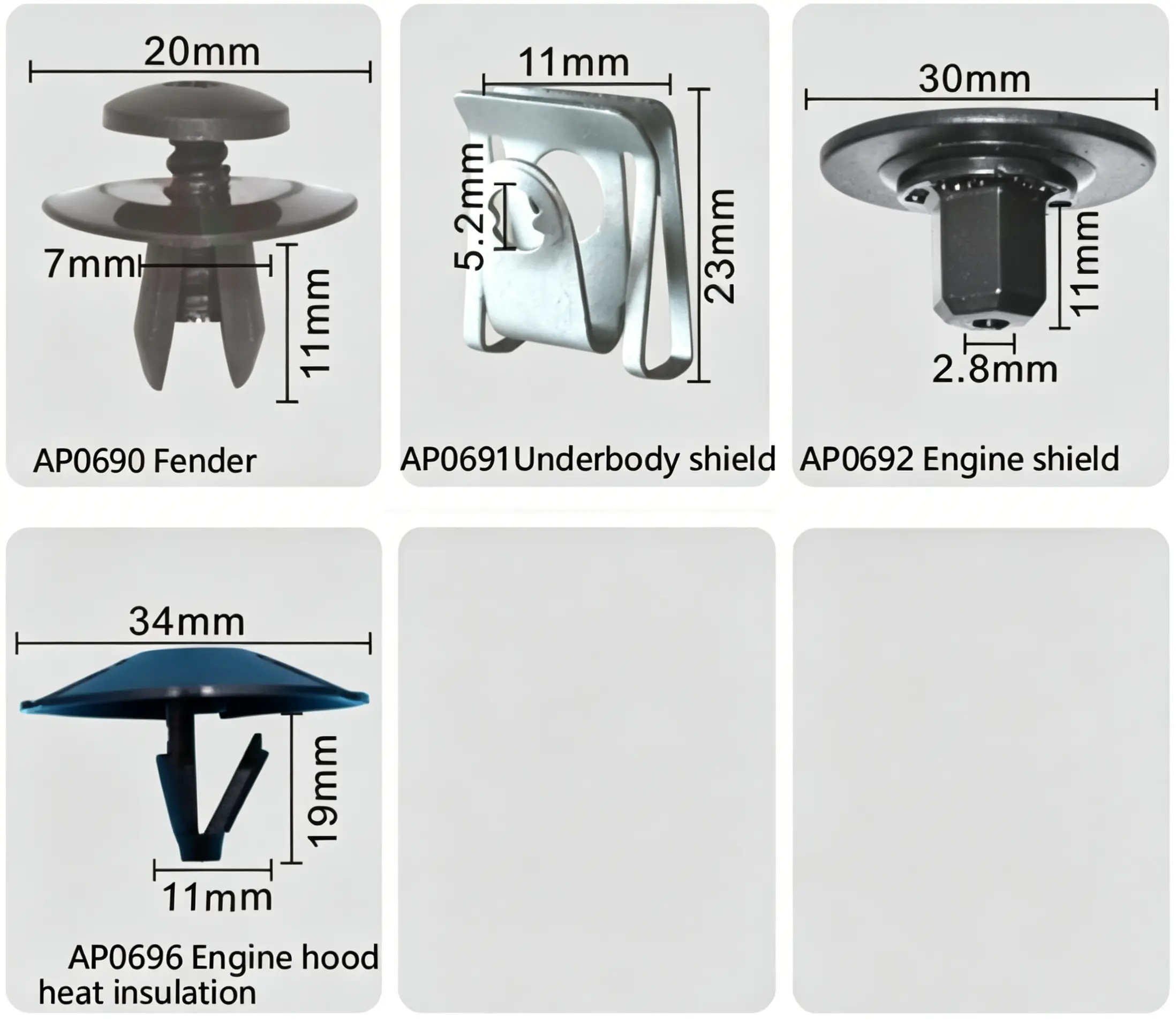

This selection covers commonly used automotive fasteners for Audi fender liner, underbody shield, engine shield, and engine hood heat insulation systems. Refer to the image above for exact dimensions and part markings.
Fastener Reference List
AP0690 – Fender clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q5 (8R/80A). Application location: fender liner retainer and wheel arch inner shield clip.
AP0691 – Underbody shield clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U/F3), and Q5 (8R). Application location: underbody shield retainer and front lower cover clip.
AP0692 – Engine shield clip. Test-fitted on Audi A4 (B8/B9), A5 (B8/B9), A6 (C7/C8), and Q7 (4M). Application location: engine undercover retainer and lower engine shield clip.
AP0696 – Engine hood heat insulation clip. Test-fitted on Audi A3 (8P/8V), A4 (B8/B9), Q3 (8U), and Q5 (8R). Application location: hood insulation pad retainer and engine hood liner clip.
How to ensure correct fitment:
Remove your original fastener from the vehicle
Measure total length, head diameter, stem length and rib width using a caliper
Compare with the dimensions marked on the image above
If all dimensions match within 0.5mm, this part will fit your vehicle
Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.
Please verify the part against your original Audi fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
