Shield Clip, Lower Edge Clip, Hood Insulation Clip, Glass Support Bracket, Trim Panel Clip
Selection of underbody shield, hood insulation, glass support and interior fasteners
Test-fitted on select BMW models (please verify fitment before ordering)
Buy individually as needed
Includes shield clip, hood insulation clip, glass support bracket, trim panel clip, side skirt cli
Product Overview

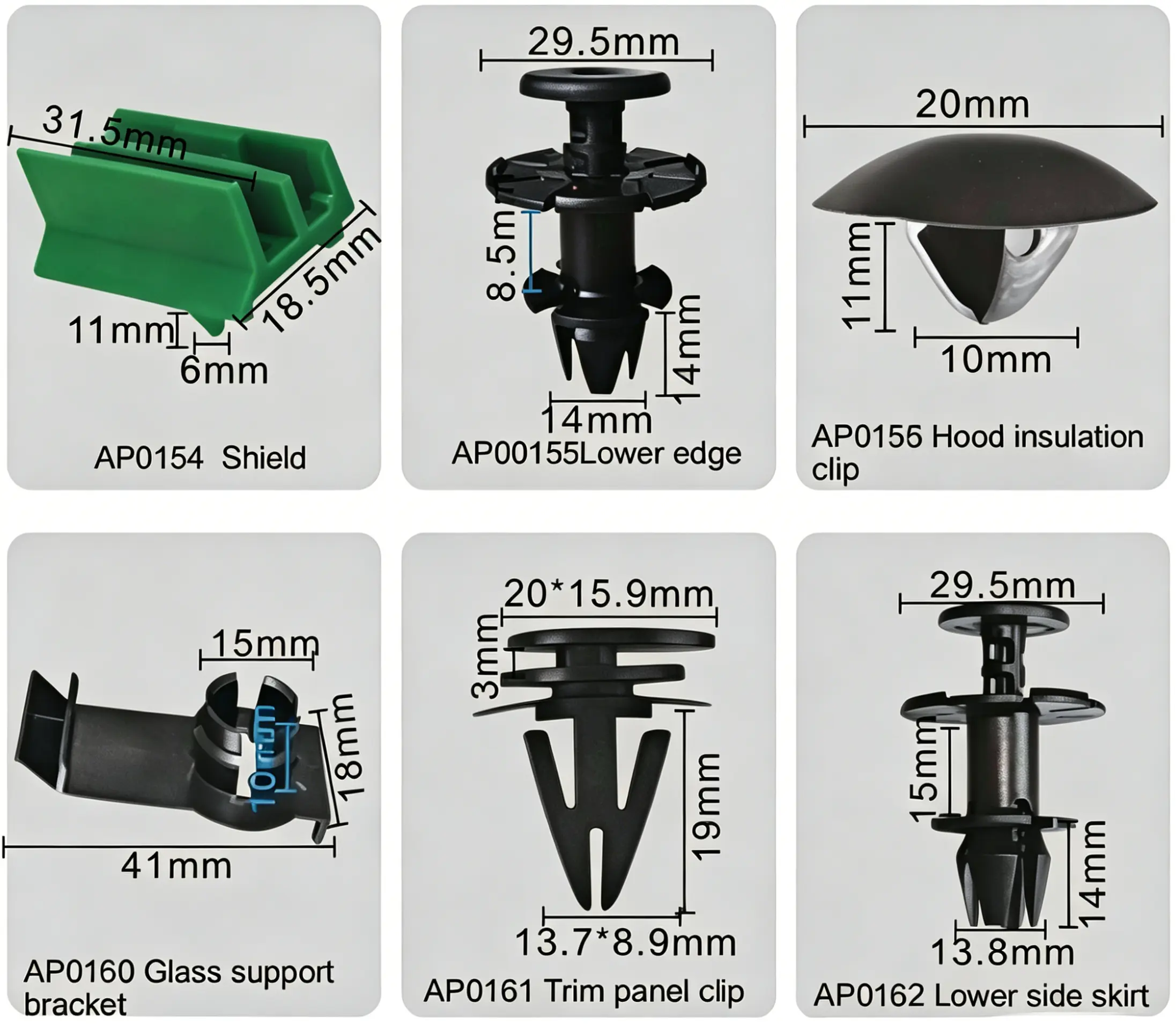

This selection covers commonly used automotive fasteners for BMW underbody shield, hood insulation, glass support, interior trim, and lower side skirt systems. Refer to the image above for exact dimensions and part markings.
Fastener Reference List
AP0154 – Shield clip. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: underbody shield retainer and engine splash guard clip.
AP0155 – Lower edge clip. Test-fitted on BMW 3 Series (E46/E90/F30), 5 Series (E39/E60/F10), and X3 (E83). Application location: lower bumper edge retainer and front lip clip.
AP0156 – Hood insulation clip. Test-fitted on BMW 1 Series (E81/E87/F20), 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: hood insulation pad retainer and hood liner clip.
AP0160 – Glass support bracket. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X3 (F25). Application location: window glass support bracket and door glass guide retainer.
AP0161 – Trim panel clip. Test-fitted on BMW 1 Series (E87/F20), 3 Series (E90/F30), 5 Series (E60/F10), and X3 (E83). Application location: interior trim panel retainer and A/B/C pillar trim clip.
AP0162 – Lower side skirt clip. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), X3 (E83/F25), and X5 (E70). Application location: lower side skirt retainer and rocker panel clip.
How to ensure correct fitment:
Remove your original fastener from the vehicle
Measure total length, head diameter, stem length and rib width using a caliper
Compare with the dimensions marked on the image above
If all dimensions match within 0.5mm, this part will fit your vehicle
Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.
Please verify the part against your original BMW fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
