Radiator Rubber Mount, Front Bracket, Hood Insulation Clip, Radiator Bracket
Selection of radiator mounting, front bracket and hood insulation fasteners
Test-fitted on select BMW models (please verify fitment before ordering)
Buy individually as needed
Includes radiator rubber mounts, front bracket, hood insulation clip, radiator bracket
Product Overview

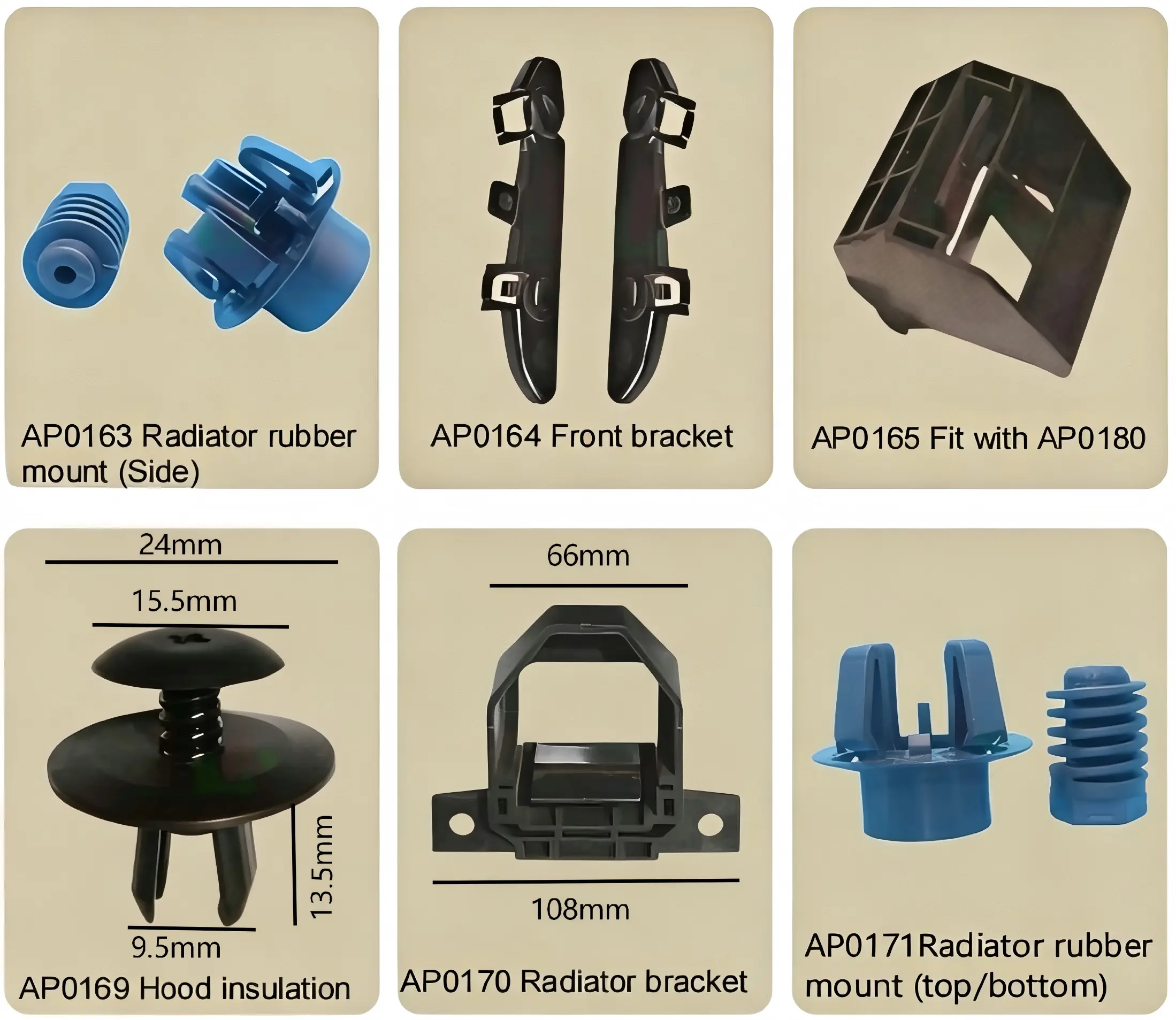

This selection covers commonly used automotive fasteners for BMW radiator mounting, front bracket, hood insulation, and cooling module systems. Refer to the image above for exact dimensions and part markings.
Fastener Reference List
AP0163 – Radiator rubber mount (side). Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: radiator side rubber cushion mount and cooling module isolator.
AP0164 – Front bracket. Test-fitted on BMW 1 Series (E81/E87/F20), 3 Series (E90/F30), and X3 (E83/F25). Application location: front support bracket and radiator upper bracket retainer.
AP0165 – Mating clip for AP0180. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: mating clip for shield assembly and retainer (paired with AP0180).
AP0169 – Hood insulation clip. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), X3 (E83/F25), and X5 (E70). Application location: hood insulation pad retainer and engine hood liner clip.
AP0170 – Radiator bracket. Test-fitted on BMW 1 Series (F20), 3 Series (E90/F30), 5 Series (E60/F10), and X3 (F25). Application location: radiator support bracket and cooling module mounting retainer.
AP0171 – Radiator rubber mount (top/bottom). Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: radiator upper and lower rubber cushion mount.
How to ensure correct fitment:
Remove your original fastener from the vehicle
Measure total length, head diameter, stem length and rib width using a caliper
Compare with the dimensions marked on the image above
If all dimensions match within 0.5mm, this part will fit your vehicle
Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.
Please verify the part against your original BMW fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
