Headlight Bracket, Inner Liner Clip, Fender Flare Clip, Lower Rocker Panel Clip

Product Overview

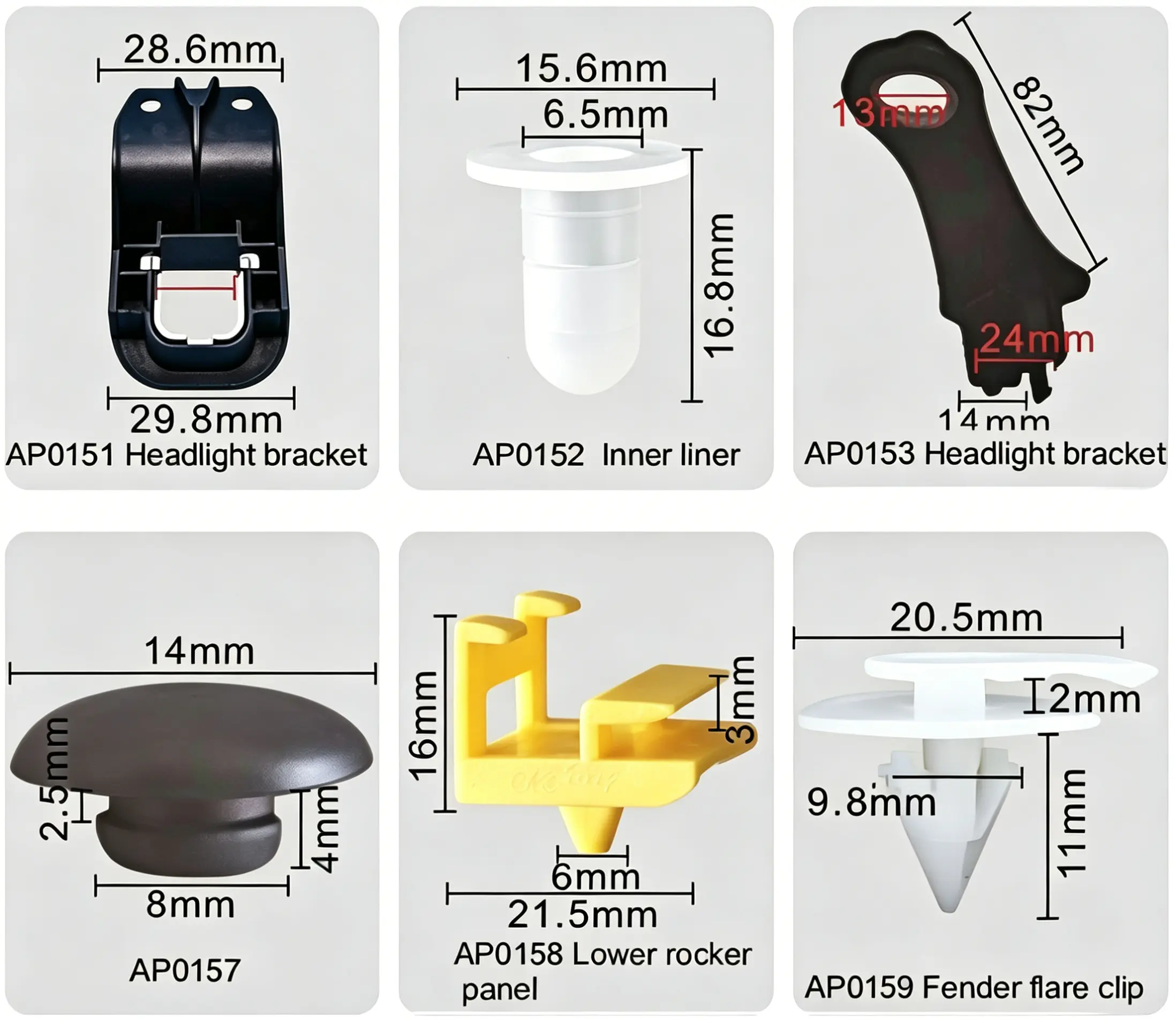

This selection covers commonly used automotive fasteners for BMW headlight assembly, fender liner, fender flare, and lower rocker panel systems. Refer to the image above for exact dimensions and part markings.

Fastener Reference List

AP0151 – Headlight bracket. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: headlight housing mounting bracket and headlight leveling adjustment retainer.

AP0152 – Inner liner clip. Test-fitted on BMW 3 Series (E90/F30), X3 (E83/F25), and X5 (E53/E70). Application location: fender inner liner retainer and wheel arch shield clip.

AP0153 – Headlight bracket. Test-fitted on BMW 1 Series (E81/E87/F20), 3 Series (E46/E90), and 5 Series (E39/E60). Application location: lower headlight mounting point and headlight support bracket.

AP0157 – Retainer clip. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X3 (E83). Application location: underbody retainer and splash shield fastener.

AP0158 – Lower rocker panel clip. Test-fitted on BMW 3 Series (E90/F30), 5 Series (E60/F10), and X5 (E70). Application location: rocker panel lower retainer and side skirt mounting clip.

AP0159 – Fender flare clip. Test-fitted on BMW X3 (E83/F25), X5 (E53/E70), and X7 (G07). Application location: fender flare retainer and wheel arch extension clip.

How to ensure correct fitment:

1. Remove your original fastener from the vehicle

2. Measure total length, head diameter, stem length and rib width using a caliper

3. Compare with the dimensions marked on the image above

4. If all dimensions match within 0.5mm, this part will fit your vehicle

Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.

Please verify the part against your original BMW fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
