Sill Side Skirt Lower Guard Clip, Fender Liner Mudguard Nut, Weatherstrip Clip, Fender Liner Clip
Selection of side skirt, fender liner and weatherstrip fasteners
Test-fitted on select Volvo models (please verify fitment before ordering)
Buy individually as needed
Includes side skirt clips, fender liner nut, weatherstrip clip, fender liner clip
Product Overview

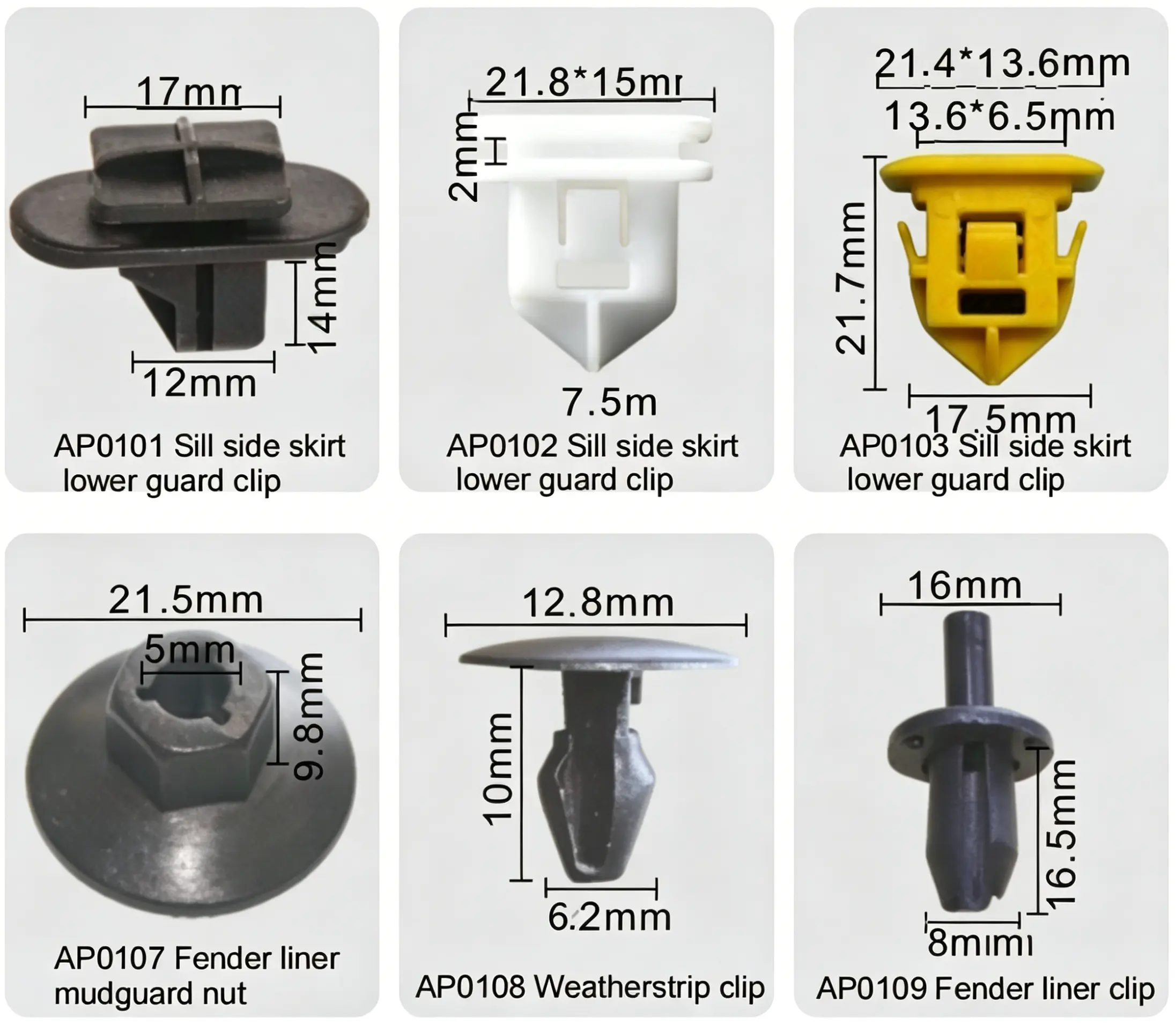

This selection covers commonly used automotive fasteners for Volvo side skirt, fender liner, mudguard, and weatherstrip systems. Refer to the image above for exact dimensions and part markings.
Fastener Reference List
AP0101 – Sill side skirt lower guard clip. Test-fitted on Volvo S60 (2011-2018), V60 (2011-2018), XC60 (2009-2017), and XC90 (2003-2014). Application location: side skirt lower guard retainer and rocker panel clip.
AP0102 – Sill side skirt lower guard clip. Test-fitted on Volvo S80 (2007-2016), V70 (2008-2016), XC70 (2008-2016), and S90 (2017-2020). Application location: side skirt lower trim retainer and underbody side panel clip.
AP0103 – Sill side skirt lower guard clip. Test-fitted on Volvo XC60 (2018+), XC90 (2015+), S90 (2017+), and V90 (2017+). Application location: side skirt lower guard retainer and side sill molding clip.
AP0107 – Fender liner mudguard nut. Test-fitted on Volvo S60 (2001-2009), V70 (2001-2008), XC70 (2001-2008), and XC90 (2003-2014). Application location: fender liner mudguard retaining nut and wheel arch shield fastener.
AP0108 – Weatherstrip clip. Test-fitted on Volvo S60 (2011-2018), V60 (2011-2018), XC60 (2009-2017), and S80 (2007-2016). Application location: door weatherstrip retainer and body seal clip.
AP0109 – Fender liner clip. Test-fitted on Volvo XC60 (2018+), XC90 (2015+), S90 (2017+), and V90 (2017+). Application location: fender liner retainer and wheel arch inner shield clip.
How to ensure correct fitment:
Remove your original fastener from the vehicle
Measure total length, head diameter, stem length and rib width using a caliper
Compare with the dimensions marked on the image above
If all dimensions match within 0.5mm, this part will fit your vehicle
Need help? Send us a photo of your original fastener with a ruler next to it. We will verify fitment for you within 24 hours.
Please verify the part against your original Volvo fastener before ordering. Dimension matching is the most reliable method for perfect fitment.
